Manage conversions

The conversion editor can be started via the per menu . This allows you to manage, create and delete conversion elements.

A menu entry is created for each conversion. This entry can be used to convert the selected data record into the desired format.

Settings
	Display name of the conversion in the menu.
	Display colours of the conversion in the menu.
	Mode: Use captured raw images: The conversion is performed with the original images. Generate image from display record: The conversion is carried out via a display record (drop-down selection above the image).
	Selection of the record for the "Generate image from display record" mode.
	File type of the saved image. Pay attention to the image depth of the raw image here.
	Image quality with file type JPG.
File
	Target folder for the generated file. A dynamic name can be configured using the editor.
	Name of the generated file. A dynamic name can be configured using the editor.

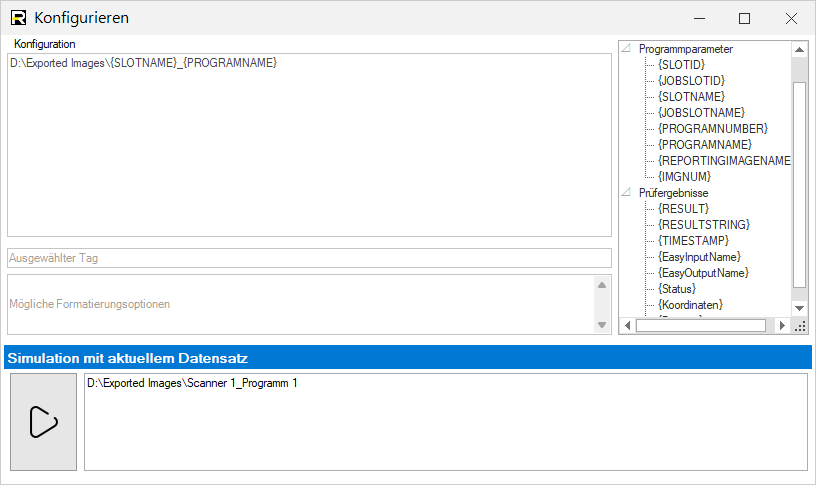

Configure path and file name

The target folder and file name can be generated from the loaded test results using a dynamic tag. This enables very simple and flexible parameterisation.
