Save CSV file
This module is used to save test data in CSV format. The data is prepared in the test sequence of the respective camera station.

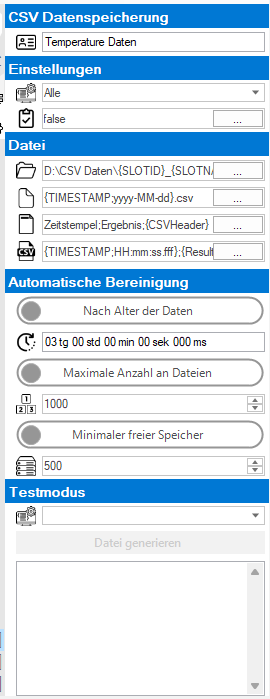

Configuration example: using EasyTool CSV_Data_Collector
CSV recording
|
Name of the block for display in the overview. |
Einstellungen
|
Selection of the test station for which this module is to save data. If the option "All" is selected, the data will be generated for all stations. |
|
If this save condition is met, then the data set is saved. The configuration is done via the integrated condition editor. |
File
|
Configuration of the base folder. The configuration is done via the integrated configurator. |
|
Configuration of the base folder. The configuration is done via the integrated configurator. |
|
Header of the CSV file with all headers. The configuration is done via the integrated configurator. If a check result of the type "System.Array" is passed, then all values of the array are appended one after the other separated with ";". |
|
Data line of the CSV file. The configuration is done via the integrated configurator. If a check result of the type "System.Array" is passed, then all values of the array are appended one after the other separated with ";". |
Automatic cleanup
| By age of data | Deletes all files from the set age. |
| Maximum number of files | Deletes all data if there is more than the set number in the folder. |
| Minimum free memory | Deletes all files by age when the disk space falls below the set value. |
Please note the further information on cleanup!
Test mode
The test mode is used to test the storage condition or the paths and file names. IMPORTANT: There must be a test result with valid data for the test to be performed.
