Save reports

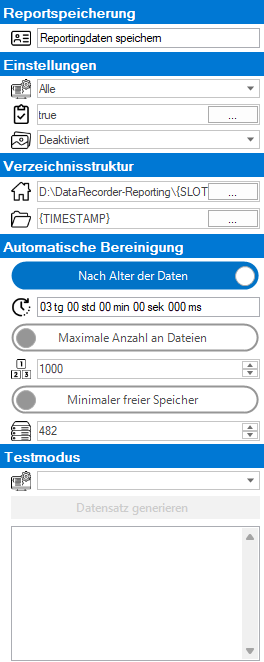

This block is used to store EasySightPro® Reporting records.

Name of the block for display in the overview.
Selection of the test station for which this module is to save data. With option "All" the data for all stations are generated.
If this save condition is met, then the data set is saved. The configuration is done via the integrated condition editor.

Modes:
- Disabled:No record is saved. Only the raw images can be displayed in the EasyReportingViewer.
- EasyOutput.DisplayRecord only: Saves the 'EasyOutput.DisplayRecord' record. This means that no tool records are available in the EasyReportingViewer.
- Complete record: Saves all tool records. The display in the EasyReportingViewer corresponds to the EasySightPro® display.

ATTENTION: The memory requirements for the complete display records can be very high!

Configuration of the base folder. The configuration is done via the integrated configurator.
Configuration of the reporting folder. The configuration is done via the integrated configurator.
By age of data Deletes all data from the set age.
Maximum number of files Deletes all data if there is more than the set number in the base folder.
Minimum free memory Deletes all data by age when the disk space falls below the set value.

Please note the further information on automatic cleanup!

The test mode is used to test the storage condition or the paths and file names. IMPORTANT: There must be a test result with valid data for the test to be performed.
