Datalink

The Datalink module sends dynamically generated texts via a TCP/IP socket. The module acts as a server and the host computer connects as a client. The server does not constantly send data to the client; data is sent after each test result.

Important: A TCP/IP socket server is created for all stations. Each test result is sent as a message via the module.

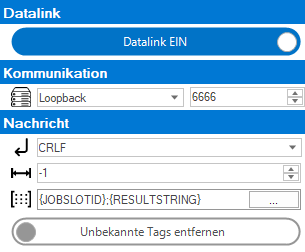

OFF: Module is deactivated
ON: Module is activated
IP address of the network card on which the server is created.
The communication port (default: 6666) can also be changed.
End of line of the message to be sent.
Maintain fixed message length when sending. (Default: -1)
-1 means that the message length is not limited.

Compilation of the message, which is generated dynamically with each new result.
Tags generated with the EasyOutputTool can be sent automatically.
Example: TagName: Message -> {Message}

Information: The structure of the message can be easily configured using the integrated editor. At least one test result must be available for this.
Remove unknown tag s Remove unknown placeholders from the result text.

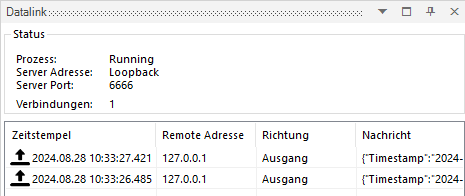

The current settings and connections are visible in the Datalink status window.

Information: Sent messages are displayed when the window is open.

Example video:

In the example shown, an OCR text is read and the information is transferred to the higher-level system in Json format.

Connection example using YAT

Yet Another Terminal (Link) is delivered with the setup of EasySightPro® (subfolder 3rd Party).

Description:

Development, testing and debugging of serial communication. Supports RS-232/422/423/485 as well as TCP/IP Client/Server/AutoSocket, UDP/IP Client/Server/PairSocket and USB Ser/HID. Optimised for simple command sets of e.g. embedded systems.

  • Start YAT

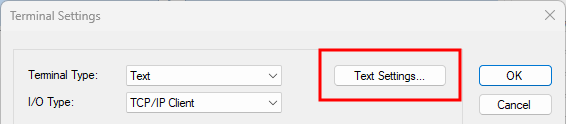

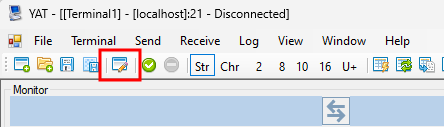

  • Open communication settings

  • Configure the network card and port as in the data link settings

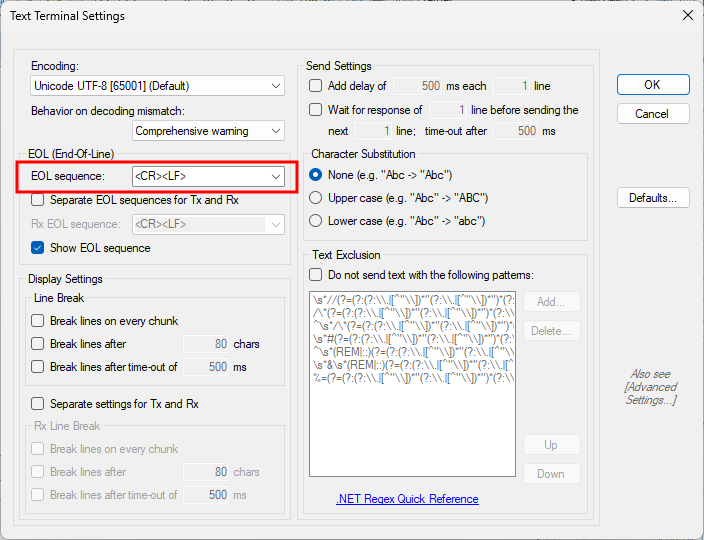

  • Complete the line under "Text Settings" as in EasySightPro

  • Close both settings windows with "OK"

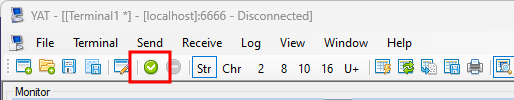

  • Establish connection

  • If the connection was established successfully, the status is displayed in the YAT window line with a green circle.

  • An active connection also appears in the Datalink status window

Each line transferred corresponds to the result of a camera check:

Copy

YAT output

{"Timestamp":"2024-08-28T10:47:36.4229361+02:00","ImageNumber":186,"StationName":"OCR Testsystem","Text":"15C0262085"/*Gelesener Text. Fehlende Zeichen mit ?*/,"BestMatch":"15C0262085"/*Die besten 14 Zeichen*/,"BestMatchPos":100.0/*Abstand vom ersten BestMatch Zeichen zum CalibPoint*/,"CalibPos":{"X":94.8798862828713,"Y":357.14001421464093},"OCR":[{"Char":"1","Score":99.5941,"CenterX":-8.2817962828712872,"CenterY":-62.590972214640956,"SideXLength":24.33724,"SideYLength":24.33724},{"Char":"5","Score":99.9576,"CenterX":-8.5160952828712571,"CenterY":-84.211120214641014,"SideXLength":24.326714000000006,"SideYLength":24.326714000000006},{"Char":"C","Score":98.5699,"CenterX":-7.9295172828712577,"CenterY":-115.54260221464095,"SideXLength":25.728479,"SideYLength":25.728479},{"Char":"0","Score":99.89670000000001,"CenterX":-9.1232582828712516,"CenterY":-144.05278021464096,"SideXLength":24.127679999999998,"SideYLength":24.127679999999998},{"Char":"2","Score":99.8305,"CenterX":-8.8117492828712312,"CenterY":-168.40675321464096,"SideXLength":24.456747,"SideYLength":24.456747},{"Char":"6","Score":99.9979,"CenterX":-9.7007722828712453,"CenterY":-190.21285921464096,"SideXLength":23.325113,"SideYLength":23.325113},{"Char":"2","Score":99.9475,"CenterX":-8.154965282871208,"CenterY":-214.19244321464097,"SideXLength":24.338472,"SideYLength":24.338472},{"Char":"0","Score":99.9034,"CenterX":-9.5265172828711986,"CenterY":-236.95874021464098,"SideXLength":24.995213000000003,"SideYLength":24.995213000000003},{"Char":"8","Score":99.949,"CenterX":-8.9302492828712019,"CenterY":-259.05773921464095,"SideXLength":22.628704,"SideYLength":22.628704},{"Char":"5","Score":99.7956,"CenterX":-10.168485282871179,"CenterY":-283.05557221464096,"SideXLength":23.900173,"SideYLength":23.900173}]}<CR><LF>
{"Timestamp":"2024-08-28T10:47:37.5676563+02:00","ImageNumber":187,"StationName":"OCR Testsystem","Text":"15C0262084"/*Gelesener Text. Fehlende Zeichen mit ?*/,"BestMatch":"15C0262084"/*Die besten 14 Zeichen*/,"BestMatchPos":100.0/*Abstand vom ersten BestMatch Zeichen zum CalibPoint*/,"CalibPos":{"X":94.8798862828713,"Y":357.14001421464093},"OCR":[{"Char":"1","Score":99.9407,"CenterX":-8.7292912828712677,"CenterY":-68.000152214641,"SideXLength":23.539642,"SideYLength":23.539642},{"Char":"5","Score":99.3076,"CenterX":-9.73766828287127,"CenterY":-89.520965214641,"SideXLength":23.612366,"SideYLength":23.612366},{"Char":"C","Score":99.1459,"CenterX":-8.751386282871259,"CenterY":-118.30769321464093,"SideXLength":25.194712000000006,"SideYLength":25.194712000000006},{"Char":"0","Score":99.87660000000001,"CenterX":-8.2913642828712568,"CenterY":-149.02807621464095,"SideXLength":24.26442,"SideYLength":24.26442},{"Char":"2","Score":99.9644,"CenterX":-9.0763672828712352,"CenterY":-172.55505321464096,"SideXLength":24.740419,"SideYLength":24.740419},{"Char":"6","Score":99.9824,"CenterX":-8.597653282871228,"CenterY":-194.27172821464092,"SideXLength":23.152525,"SideYLength":23.152525},{"Char":"2","Score":99.9694,"CenterX":-8.27209228287123,"CenterY":-217.22048921464093,"SideXLength":23.857235,"SideYLength":23.857235},{"Char":"0","Score":99.888,"CenterX":-9.4815952828712131,"CenterY":-239.90484621464097,"SideXLength":25.005283,"SideYLength":25.005283},{"Char":"8","Score":99.9369,"CenterX":-9.7562232828712,"CenterY":-264.22741621464093,"SideXLength":23.584557,"SideYLength":23.584557},{"Char":"4","Score":99.971600000000009,"CenterX":-9.0834632828711932,"CenterY":-286.345031214641,"SideXLength":23.167891,"SideYLength":23.167891}]}<CR><LF>
{"Timestamp":"2024-08-28T10:47:38.7193858+02:00","ImageNumber":188,"StationName":"OCR Testsystem","Text":"15C0262083"/*Gelesener Text. Fehlende Zeichen mit ?*/,"BestMatch":"15C0262083"/*Die besten 14 Zeichen*/,"BestMatchPos":100.0/*Abstand vom ersten BestMatch Zeichen zum CalibPoint*/,"CalibPos":{"X":94.8798862828713,"Y":357.14001421464093},"OCR":[{"Char":"1","Score":98.8779,"CenterX":-9.41053528287128,"CenterY":-64.75250221464097,"SideXLength":23.582996,"SideYLength":23.582996},{"Char":"5","Score":99.4975,"CenterX":-10.502835282871262,"CenterY":-88.399597214640963,"SideXLength":24.398624,"SideYLength":24.398624},{"Char":"C","Score":99.8655,"CenterX":-9.10296328287125,"CenterY":-117.62496921464097,"SideXLength":25.680376,"SideYLength":25.680376},{"Char":"0","Score":99.7926,"CenterX":-8.9762542828712526,"CenterY":-147.94383221464096,"SideXLength":24.676126000000007,"SideYLength":24.676126000000007},{"Char":"2","Score":99.9463,"CenterX":-9.3446322828712365,"CenterY":-171.77912821464096,"SideXLength":24.404767999999994,"SideYLength":24.404767999999994},{"Char":"6","Score":99.9984,"CenterX":-9.5396702828712456,"CenterY":-193.85678021464096,"SideXLength":22.812847,"SideYLength":22.812847},{"Char":"2","Score":99.9764,"CenterX":-8.86938228287122,"CenterY":-216.51351921464098,"SideXLength":23.862297000000005,"SideYLength":23.862297000000005},{"Char":"0","Score":99.699400000000011,"CenterX":-9.6724672828712137,"CenterY":-239.13406321464095,"SideXLength":24.580679,"SideYLength":24.580679},{"Char":"8","Score":99.8521,"CenterX":-9.4638802828712016,"CenterY":-261.76446521464095,"SideXLength":23.6462,"SideYLength":23.6462},{"Char":"3","Score":99.9471,"CenterX":-9.9004792828711867,"CenterY":-285.471679214641,"SideXLength":23.11837,"SideYLength":23.11837}]}<CR><LF>
{"Timestamp":"2024-08-28T10:47:39.8588312+02:00","ImageNumber":189,"StationName":"OCR Testsystem","Text":"15C0262082"/*Gelesener Text. Fehlende Zeichen mit ?*/,"BestMatch":"15C0262082"/*Die besten 14 Zeichen*/,"BestMatchPos":100.0/*Abstand vom ersten BestMatch Zeichen zum CalibPoint*/,"CalibPos":{"X":94.8798862828713,"Y":357.14001421464093},"OCR":[{"Char":"1","Score":99.9397,"CenterX":-7.9733252828712615,"CenterY":-66.664123214640938,"SideXLength":24.444355000000005,"SideYLength":24.444355000000005},{"Char":"5","Score":99.5222,"CenterX":-9.4969152828712637,"CenterY":-89.807037214640985,"SideXLength":24.327088999999997,"SideYLength":24.327088999999997},{"Char":"C","Score":98.3113,"CenterX":-8.6604132828712643,"CenterY":-119.04808021464095,"SideXLength":25.644613,"SideYLength":25.644613},{"Char":"0","Score":99.6185,"CenterX":-8.0501532828712463,"CenterY":-149.27056821464095,"SideXLength":24.496569,"SideYLength":24.496569},{"Char":"2","Score":99.9619,"CenterX":-9.05914028287123,"CenterY":-172.81886221464094,"SideXLength":24.757202000000003,"SideYLength":24.757202000000003},{"Char":"6","Score":99.9719,"CenterX":-8.55715728287122,"CenterY":-194.36877421464095,"SideXLength":23.328016,"SideYLength":23.328016},{"Char":"2","Score":99.9731,"CenterX":-8.45753228287123,"CenterY":-217.47167921464091,"SideXLength":23.853674,"SideYLength":23.853674},{"Char":"0","Score":99.984799999999993,"CenterX":-9.6869942828712023,"CenterY":-239.80096421464094,"SideXLength":24.49614,"SideYLength":24.49614},{"Char":"8","Score":99.8732,"CenterX":-9.9052402828712065,"CenterY":-264.99884021464095,"SideXLength":23.526779,"SideYLength":23.526779},{"Char":"2","Score":99.835,"CenterX":-9.2397592828711943,"CenterY":-287.04306021464095,"SideXLength":23.664288,"SideYLength":23.664288}]}<CR><LF>
{"Timestamp":"2024-08-28T10:47:40.9965058+02:00","ImageNumber":190,"StationName":"OCR Testsystem","Text":"15C0262079"/*Gelesener Text. Fehlende Zeichen mit ?*/,"BestMatch":"15C0262079"/*Die besten 14 Zeichen*/,"BestMatchPos":100.0/*Abstand vom ersten BestMatch Zeichen zum CalibPoint*/,"CalibPos":{"X":94.8798862828713,"Y":357.14001421464093},"OCR":[{"Char":"1","Score":95.385600000000011,"CenterX":-7.9211862828712718,"CenterY":-65.446166214640982,"SideXLength":23.874079,"SideYLength":23.874079},{"Char":"5","Score":99.617,"CenterX":-9.4473092828712613,"CenterY":-89.038207214640977,"SideXLength":24.462122,"SideYLength":24.462122},{"Char":"C","Score":97.7044,"CenterX":-8.4494452828712578,"CenterY":-118.38357521464094,"SideXLength":25.439705,"SideYLength":25.439705},{"Char":"0","Score":95.2929,"CenterX":-7.9353912828712545,"CenterY":-148.99764921464094,"SideXLength":25.104916,"SideYLength":25.104916},{"Char":"2","Score":99.953099999999992,"CenterX":-9.0920232828712351,"CenterY":-172.04833921464092,"SideXLength":24.578121,"SideYLength":24.578121},{"Char":"6","Score":99.9964,"CenterX":-8.5240912828712325,"CenterY":-194.05091821464094,"SideXLength":23.425991,"SideYLength":23.425991},{"Char":"2","Score":99.9541,"CenterX":-7.9372072828712241,"CenterY":-216.68280021464093,"SideXLength":24.04435,"SideYLength":24.04435},{"Char":"0","Score":99.8485,"CenterX":-8.0454532828712075,"CenterY":-239.274688214641,"SideXLength":23.986645,"SideYLength":23.986645},{"Char":"7","Score":98.7727,"CenterX":-8.8738532828712131,"CenterY":-262.833770214641,"SideXLength":24.566231,"SideYLength":24.566231},{"Char":"9","Score":99.6517,"CenterX":-9.37424928287119,"CenterY":-285.58355621464096,"SideXLength":23.456287,"SideYLength":23.456287}]}<CR><LF>
{"Timestamp":"2024-08-28T10:47:42.1319719+02:00","ImageNumber":191,"StationName":"OCR Testsystem","Text":"15C0262078"/*Gelesener Text. Fehlende Zeichen mit ?*/,"BestMatch":"15C0262078"/*Die besten 14 Zeichen*/,"BestMatchPos":100.0/*Abstand vom ersten BestMatch Zeichen zum CalibPoint*/,"CalibPos":{"X":94.8798862828713,"Y":357.14001421464093},"OCR":[{"Char":"1","Score":98.9849,"CenterX":-8.9365972828712721,"CenterY":-62.57263121464095,"SideXLength":23.84993,"SideYLength":23.84993},{"Char":"5","Score":99.4309,"CenterX":-9.2903112828712526,"CenterY":-84.549133214640989,"SideXLength":24.148891000000003,"SideYLength":24.148891000000003},{"Char":"C","Score":99.890999999999991,"CenterX":-8.4298982828712621,"CenterY":-115.80226121464095,"SideXLength":25.470465000000004,"SideYLength":25.470465000000004},{"Char":"0","Score":99.7774,"CenterX":-9.6114632828712487,"CenterY":-144.50588921464094,"SideXLength":24.424635000000002,"SideYLength":24.424635000000002},{"Char":"2","Score":99.9375,"CenterX":-9.1078312828712242,"CenterY":-168.78721621464092,"SideXLength":24.285379,"SideYLength":24.285379},{"Char":"6","Score":99.9955,"CenterX":-9.9706242828712419,"CenterY":-190.70324621464096,"SideXLength":23.813772000000004,"SideYLength":23.813772000000004},{"Char":"2","Score":99.9566,"CenterX":-10.198087282871223,"CenterY":-213.34216221464098,"SideXLength":24.481789000000003,"SideYLength":24.481789000000003},{"Char":"0","Score":99.7644,"CenterX":-9.58341728287121,"CenterY":-237.48837221464098,"SideXLength":25.267439,"SideYLength":25.267439},{"Char":"7","Score":96.0542,"CenterX":-9.069654282871209,"CenterY":-259.71801721464095,"SideXLength":25.185539,"SideYLength":25.185539},{"Char":"8","Score":99.9199,"CenterX":-9.57279728287119,"CenterY":-282.896728214641,"SideXLength":23.456967999999996,"SideYLength":23.456967999999996}]}<CR><LF>
{"Timestamp":"2024-08-28T10:47:43.262481+02:00","ImageNumber":192,"StationName":"OCR Testsystem","Text":"15C0262011"/*Gelesener Text. Fehlende Zeichen mit ?*/,"BestMatch":"15C0262011"/*Die besten 14 Zeichen*/,"BestMatchPos":100.0/*Abstand vom ersten BestMatch Zeichen zum CalibPoint*/,"CalibPos":{"X":94.8798862828713,"Y":357.14001421464093},"OCR":[{"Char":"1","Score":99.6348,"CenterX":-8.44453128287128,"CenterY":-66.538085214640958,"SideXLength":24.697138,"SideYLength":24.697138},{"Char":"5","Score":99.9408,"CenterX":-11.278745282871272,"CenterY":-88.154418214641,"SideXLength":23.762737,"SideYLength":23.762737},{"Char":"C","Score":99.8244,"CenterX":-10.279782282871258,"CenterY":-120.36961321464095,"SideXLength":25.927494,"SideYLength":25.927494},{"Char":"0","Score":99.3346,"CenterX":-8.8308382828712553,"CenterY":-149.02001921464097,"SideXLength":24.374011999999997,"SideYLength":24.374011999999997},{"Char":"2","Score":99.9402,"CenterX":-9.7863742828712343,"CenterY":-172.56979321464092,"SideXLength":24.133865000000004,"SideYLength":24.133865000000004},{"Char":"6","Score":99.9966,"CenterX":-10.13346628287124,"CenterY":-194.55659421464097,"SideXLength":22.916033,"SideYLength":22.916033},{"Char":"2","Score":99.9494,"CenterX":-9.15003728287122,"CenterY":-217.50079321464091,"SideXLength":23.692149999999998,"SideYLength":23.692149999999998},{"Char":"0","Score":99.96159999999999,"CenterX":-9.9287692828712029,"CenterY":-240.04785121464093,"SideXLength":24.004519,"SideYLength":24.004519},{"Char":"1","Score":69.4809,"CenterX":-10.480680282871205,"CenterY":-264.55908121464097,"SideXLength":24.634245,"SideYLength":24.634245},{"Char":"1","Score":99.1597,"CenterX":-9.85952528287119,"CenterY":-285.73971521464097,"SideXLength":26.211849,"SideYLength":26.211849}]}<CR><LF>
{"Timestamp":"2024-08-28T10:47:44.4262644+02:00","ImageNumber":193,"StationName":"OCR Testsystem","Text":"15C0262076"/*Gelesener Text. Fehlende Zeichen mit ?*/,"BestMatch":"15C0262076"/*Die besten 14 Zeichen*/,"BestMatchPos":100.0/*Abstand vom ersten BestMatch Zeichen zum CalibPoint*/,"CalibPos":{"X":94.8798862828713,"Y":357.14001421464093},"OCR":[{"Char":"1","Score":93.9919,"CenterX":-7.9088872828712695,"CenterY":-64.733978214640956,"SideXLength":23.853697,"SideYLength":23.853697},{"Char":"5","Score":99.7076,"CenterX":-9.3581972828712559,"CenterY":-88.198058214641,"SideXLength":23.969614000000004,"SideYLength":23.969614000000004},{"Char":"C","Score":99.153500000000008,"CenterX":-8.19622528287127,"CenterY":-117.23963921464095,"SideXLength":25.672823,"SideYLength":25.672823},{"Char":"0","Score":93.963799999999992,"CenterX":-8.2041452828712416,"CenterY":-148.45709221464097,"SideXLength":25.235634000000005,"SideYLength":25.235634000000005},{"Char":"2","Score":99.8711,"CenterX":-9.281171282871238,"CenterY":-171.76716521464095,"SideXLength":24.404305,"SideYLength":24.404305},{"Char":"6","Score":99.9988,"CenterX":-9.0864842828712415,"CenterY":-193.76539521464096,"SideXLength":22.640669,"SideYLength":22.640669},{"Char":"2","Score":99.959,"CenterX":-8.4039432828712215,"CenterY":-216.39627021464096,"SideXLength":24.121706,"SideYLength":24.121706},{"Char":"0","Score":99.9888,"CenterX":-9.3590212828712041,"CenterY":-239.38027921464098,"SideXLength":24.025049,"SideYLength":24.025049},{"Char":"7","Score":98.6311,"CenterX":-9.0390752828712149,"CenterY":-262.29934621464093,"SideXLength":24.766553999999992,"SideYLength":24.766553999999992},{"Char":"6","Score":99.61,"CenterX":-9.5103272828711845,"CenterY":-285.461486214641,"SideXLength":24.321998999999998,"SideYLength":24.321998999999998}]}<CR><LF>
{"Timestamp":"2024-08-28T10:47:45.6038197+02:00","ImageNumber":194,"StationName":"OCR Testsystem","Text":"15C0262075"/*Gelesener Text. Fehlende Zeichen mit ?*/,"BestMatch":"15C0262075"/*Die besten 14 Zeichen*/,"BestMatchPos":100.0/*Abstand vom ersten BestMatch Zeichen zum CalibPoint*/,"CalibPos":{"X":94.8798862828713,"Y":357.14001421464093},"OCR":[{"Char":"1","Score":99.9626,"CenterX":-7.3157472828712748,"CenterY":-67.685882214640984,"SideXLength":24.442219,"SideYLength":24.442219},{"Char":"5","Score":99.6967,"CenterX":-8.984143282871262,"CenterY":-89.782104214641,"SideXLength":24.190891,"SideYLength":24.190891},{"Char":"C","Score":99.6647,"CenterX":-8.6063052828712578,"CenterY":-120.72792021464095,"SideXLength":26.165405,"SideYLength":26.165405},{"Char":"0","Score":99.927600000000012,"CenterX":-7.5238162828712447,"CenterY":-149.39839121464095,"SideXLength":24.238451000000005,"SideYLength":24.238451000000005},{"Char":"2","Score":99.956,"CenterX":-8.3222322828712372,"CenterY":-172.76049721464096,"SideXLength":24.478539,"SideYLength":24.478539},{"Char":"6","Score":99.9917,"CenterX":-8.9568452828712388,"CenterY":-195.94558721464097,"SideXLength":23.401133,"SideYLength":23.401133},{"Char":"2","Score":99.9823,"CenterX":-7.4282052828712217,"CenterY":-217.26831021464091,"SideXLength":23.113472,"SideYLength":23.113472},{"Char":"0","Score":99.9896,"CenterX":-8.007779282871212,"CenterY":-240.49114921464096,"SideXLength":23.059912,"SideYLength":23.059912},{"Char":"7","Score":93.7794,"CenterX":-8.6104712828711918,"CenterY":-264.76513621464096,"SideXLength":24.34943,"SideYLength":24.34943},{"Char":"5","Score":99.7021,"CenterX":-9.2635622828711952,"CenterY":-286.27108721464094,"SideXLength":23.958359,"SideYLength":23.958359}]}<CR><LF>
{"Timestamp":"2024-08-28T10:47:46.7534512+02:00","ImageNumber":195,"StationName":"OCR Testsystem","Text":"15C0262074"/*Gelesener Text. Fehlende Zeichen mit ?*/,"BestMatch":"15C0262074"/*Die besten 14 Zeichen*/,"BestMatchPos":100.0/*Abstand vom ersten BestMatch Zeichen zum CalibPoint*/,"CalibPos":{"X":94.8798862828713,"Y":357.14001421464093},"OCR":[{"Char":"1","Score":99.988,"CenterX":-8.6895272828712748,"CenterY":-70.701232214640982,"SideXLength":22.95784,"SideYLength":22.95784},{"Char":"5","Score":99.6615,"CenterX":-10.169049282871267,"CenterY":-92.231384214641025,"SideXLength":24.245245,"SideYLength":24.245245},{"Char":"C","Score":99.594400000000007,"CenterX":-9.6811192828712453,"CenterY":-123.30650321464095,"SideXLength":27.044416,"SideYLength":27.044416},{"Char":"0","Score":99.8506,"CenterX":-9.0195442828712462,"CenterY":-150.89450021464097,"SideXLength":24.932006999999995,"SideYLength":24.932006999999995},{"Char":"2","Score":99.9614,"CenterX":-9.7567722828712373,"CenterY":-174.07527121464094,"SideXLength":24.66242,"SideYLength":24.66242},{"Char":"6","Score":99.9916,"CenterX":-10.06945528287121,"CenterY":-196.94200121464095,"SideXLength":22.485727,"SideYLength":22.485727},{"Char":"2","Score":99.9213,"CenterX":-9.78332228287122,"CenterY":-220.94573921464095,"SideXLength":24.733767,"SideYLength":24.733767},{"Char":"0","Score":99.8221,"CenterX":-10.443738282871212,"CenterY":-244.10736021464095,"SideXLength":23.754798999999995,"SideYLength":23.754798999999995},{"Char":"7","Score":95.197,"CenterX":-10.087766282871206,"CenterY":-267.087005214641,"SideXLength":24.349955,"SideYLength":24.349955},{"Char":"4","Score":99.8557,"CenterX":-9.4753542828711943,"CenterY":-288.374694214641,"SideXLength":24.4849,"SideYLength":24.4849}]}<CR><LF>
{"Timestamp":"2024-08-28T10:47:47.8868103+02:00","ImageNumber":196,"StationName":"OCR Testsystem","Text":"15C0262073"/*Gelesener Text. Fehlende Zeichen mit ?*/,"BestMatch":"15C0262073"/*Die besten 14 Zeichen*/,"BestMatchPos":100.0/*Abstand vom ersten BestMatch Zeichen zum CalibPoint*/,"CalibPos":{"X":94.8798862828713,"Y":357.14001421464093},"OCR":[{"Char":"1","Score":99.3724,"CenterX":-7.98527228287128,"CenterY":-66.621703214640974,"SideXLength":23.522158,"SideYLength":23.522158},{"Char":"5","Score":99.5969,"CenterX":-9.4892552828712589,"CenterY":-89.905151214641,"SideXLength":23.995375,"SideYLength":23.995375},{"Char":"C","Score":99.11,"CenterX":-8.6442082828712614,"CenterY":-119.52358921464095,"SideXLength":25.81562,"SideYLength":25.81562},{"Char":"0","Score":99.738800000000012,"CenterX":-8.1246462828712485,"CenterY":-149.44885221464097,"SideXLength":24.45039,"SideYLength":24.45039},{"Char":"2","Score":99.9879,"CenterX":-7.8825502828712359,"CenterY":-171.99896221464095,"SideXLength":23.666686999999996,"SideYLength":23.666686999999996},{"Char":"6","Score":99.9782,"CenterX":-8.8683602828712331,"CenterY":-194.77903721464094,"SideXLength":23.245163,"SideYLength":23.245163},{"Char":"2","Score":99.9705,"CenterX":-8.0731782828712237,"CenterY":-217.25103721464095,"SideXLength":23.670713,"SideYLength":23.670713},{"Char":"0","Score":99.8994,"CenterX":-9.162030282871207,"CenterY":-240.18142621464091,"SideXLength":25.078527,"SideYLength":25.078527},{"Char":"7","Score":63.1779,"CenterX":-9.5799842828712052,"CenterY":-264.96856621464093,"SideXLength":24.0569,"SideYLength":24.0569},{"Char":"3","Score":99.8965,"CenterX":-9.0423562828711965,"CenterY":-286.29812621464094,"SideXLength":23.690042,"SideYLength":23.690042}]}<CR><LF>
