Log in user (UILOGIN)

This command is used to log a user into EasySightPro.

Input

Syntax: UILOGIN{NAME};{HASH}

{NAME}	Name of the EasySightPro® user. Corresponds to the name from the user administration.
{HASH}	Password hash of the user in format 2.

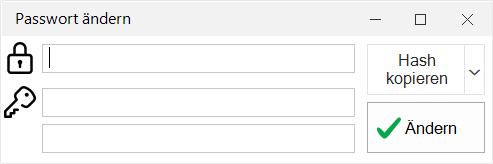

The user's password hash can be queried via the Change password dialog :

Open main menu (top left)

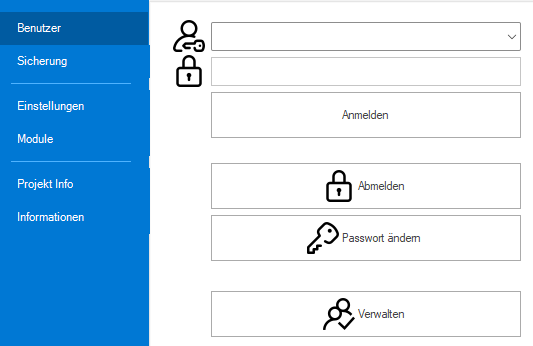

Select user tab
Open change password dialog
Copy hash → select "Format 2: 000102 ..."
The hash is copied to the clipboard and can be pasted using CTRL+V

Output

{RESULT}

Command Response	Description
0	Command was processed successfully
1	Execute not successful
2	Incorrect syntax
3	Serious error during execution
4	Function not active or manually deactivated
9	EasySightPro® will be closed

Example

Logs the user 'Demo' in.

Responses:

0 = Command response (processing OK)

Copy

UILOGINDemo;E3B0C44298FC1C149AFBF4C8996FB92427AE41E4649B934CA495991B7852B855
0

Powershell

Copy

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
Function Send-TCPMessage {
    Param (
            [Parameter(Mandatory=$true, Position=0)]
            [ValidateNotNullOrEmpty()]
            [string]
            $EndPoint
        ,
            [Parameter(Mandatory=$true, Position=1)]
            [int]
            $Port
        ,
            [Parameter(Mandatory=$true, Position=2)]
            [string]
            $Message
    )
    Process {
        # Setup connection
        $IP = [System.Net.Dns]::GetHostAddresses($EndPoint)
        $Address = [System.Net.IPAddress]::Parse($IP)
        $Socket = New-Object System.Net.Sockets.TCPClient($Address,$Port)

        # Setup stream wrtier
        $Stream = $Socket.GetStream()
        $Writer = New-Object System.IO.StreamWriter($Stream)

        # Write message to stream
        $Message | % {
            $Writer.WriteLine($_)
            $Writer.Flush()
        }

        # Give EasySightPro a chance to process the command
        # This example does no read back the answer!
        Start-Sleep -Seconds 1.5

        # Close connection and stream
        $Stream.Close()
        $Socket.Close()
    }
}

# Sende Anmeldung als Benutzer 'Demo'
Send-TCPMessage -Endpoint 127.0.0.1 -Port 21 -Message "UILOGINDemo;E3B0C44298FC1C149AFBF4C8996FB92427AE41E4649B934CA495991B7852B855"

# Sende Abmeldung
Send-TCPMessage -Endpoint 127.0.0.1 -Port 21 -Message "UILOGOUT"
