Devices

Information: The module 'devices' must be loaded in EasySightPro®.

Important: For the deep linking of control devices in image acquisition, the device must be registered as a control device in EasySightPro®.

Used to parameterize external devices such as flash controllers, liquid lens controllers, timing controllers.

Supported devices:

  • RELISTE Timing Sequencer

  • RELISTE Light Sequenzer

  • Gardasoft strobe controls RT-Serie

  • Gardasoft lens controller CL-Serie

  • Framos HPSC strobe controller

Range of functions:

  • List of all accessible devices

  • Changing the network settings

  • Parameterization of the device

  • Exporting the settings as PDF or XML

  • Import settings from XML backup

All connected and accessible devices are displayed here.

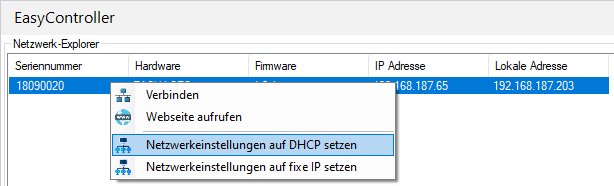

The network settings of the device can be changed and the connection established using the right mouse menu.

Once the connection to the device has been established, all parameter sets are loaded from the device and displayed. The settings therefore vary from device to device.

Re-reads the data from the device.
Saves the changed settings in the device's flash memory.
Exports the settings to a PDF file.
Exports the settings to an XML file.
Loads the settings from an XML file into the device.
