User Bits

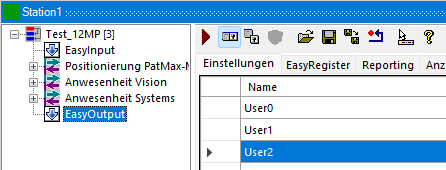

The JobSlots bits and the extended JobSlots bits each have 8 user bits on the output side, which can be assigned by the user in the test program. In order to be able to use the user bits, you must add new entries with the name "User0" to "User7" in the EasyOutputTool under the settings, depending on which bits you want to use.

Then you can assign boolean values to these entries by linking them graphically. These values are then applied directly to the respective bits on the interface.
