EasyOutputTool

The EasyOutputTool is used as an interface for data output between VisionPro and EasySightPro®.

Toolbox

The tool is already available in every inspection program by default and does not need to be inserted.

If it gets lost, it can be found in the toolbox under "EasySightPro Tools".

Warning: Only 1 EasyOutputTool may exist in each inspection program.

User interface

All settings can be changed via the tool window, the VisionPro terminals or the C# script of the ToolBlock.

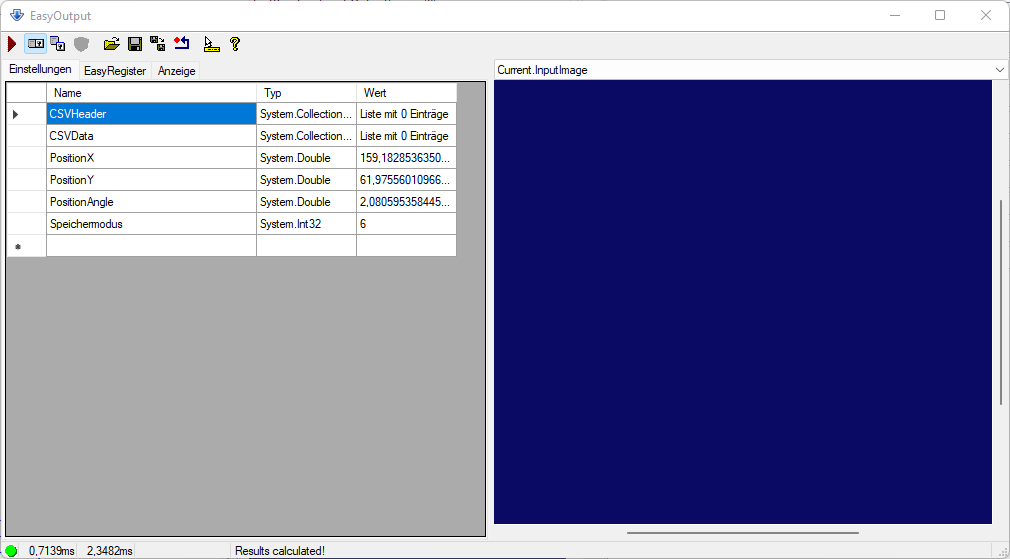

Settings

In the settings, any outputs can be created, which are then transferred to ES as test results. See detailed instructions for inspection results or user bits.

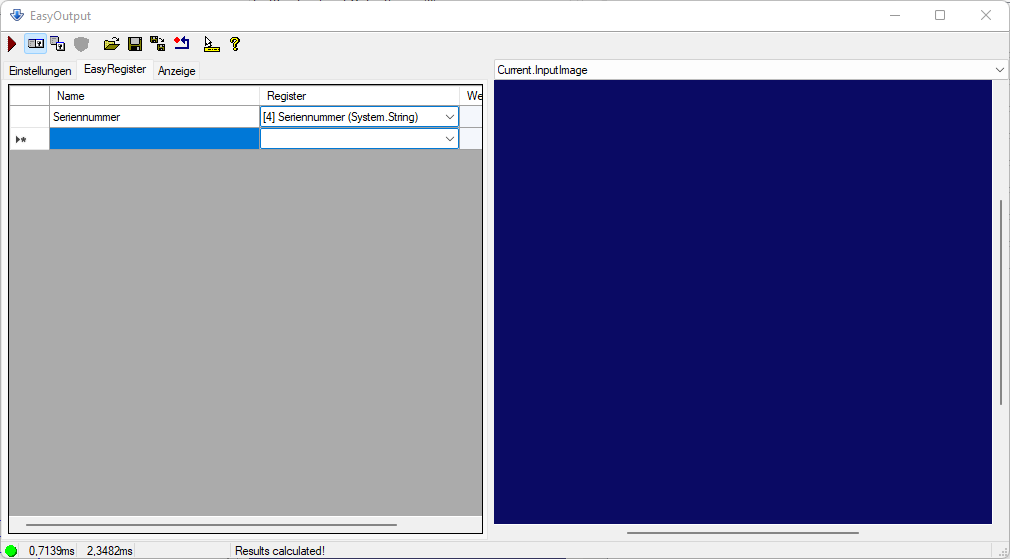

EasyRegister

All outputs defined in the EasyRegisters are automatically written to the EasyRegisters at the end of the inspection. This function is useful if data is to be shared with another station or another inspection program.

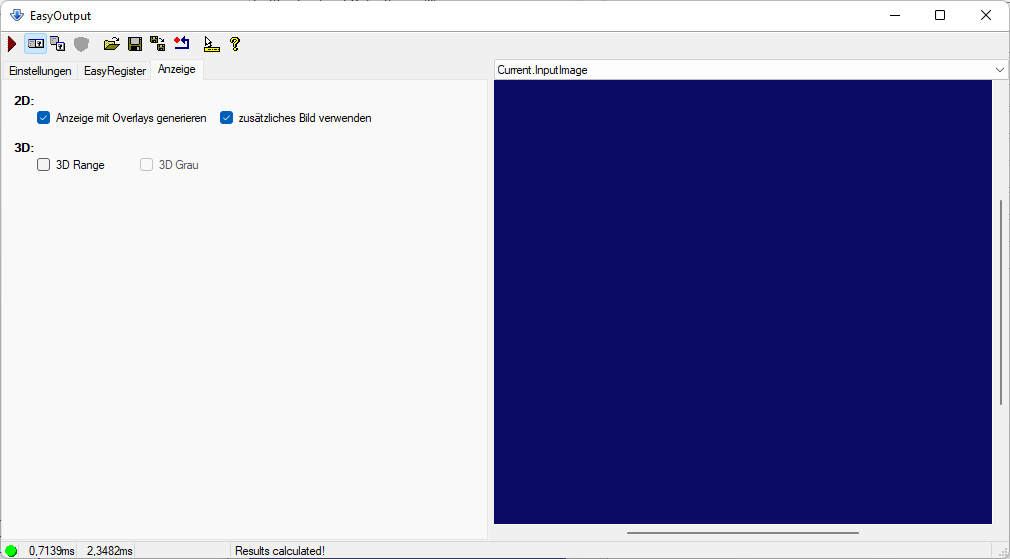

Display

In the display you can configure how the image display of the station should look like.
