Controller RVC-2106
Technical data
| Fujitsu | ASUS | |
|---|---|---|
| Housing | 19" Rack mount 4HE, ATX Support, Dust filter
1x ARCTIC P12 PWM PST Case Fan 120mm (95.65m³/h / 0.3Sone@1,800RPM) |
|
| Mainboard | FUJITSU Mainboard D3646-S | ASUS WS C246 PRO |
| Processor | Intel® Core™ i7 - 9700 Processor | |
| Graphic | Mainboard: Intel(R) HD Graphics 620 Option: max. 2x NVIDIA RTX 4000 |
|
| Chipset | Intel® Core™ i7 - 9700 Processor | |
| Working memory | 2x 16GB DDR4-2666 Non-ECC CL19 DIMM | 2x 16GB DDR4-2666 Non-ECC CL19 DIMM |
| Internal storage | System: 256GB mSATA SSD (1500 NVMe M.2 V-NAND) Data: 4TB SATA 7200RPM 6Gb/s 64MB/128MB Cache |
|
| Camera connections | max. 8 x GigE Vision (Cam1 to Cam8) via plug-in cards | |
| Ethernet connections | 2x LAN Gigabit Ethernet | |
| External connectors Front panel |
2x USB 3.0/2.0/1.1 |
|
| External connections Rear side |
1x DVI-D 2x DisplayPort V1.2 1x PS/2 Mouse / Keyboard 4x USB 2.0 2x USB 3.1 (Gen1) 2x USB 3.1 (Gen2) 1x Serial (Com1, RS232) |
1x HDMI 1x DisplayPort 1x DVI-D 1x VGA 2x USB 3.1 (Gen 2) (1x Type-A, 1x Type-C™) 4x USB 3.1 (Gen 1) 1x USB 2.0 |
| Operating system | RELISTE Vision Controller OS (Win10 IoT Enterprise LTSC 2019), German/English | |
| Power supply | 115VAC bis 230VAC CHIEFTEC Proton 1000W 24/7 |
|
| Accessories | WLAN Nano Stick USB 2.0 (150Mbps Wi-Fi Adapter) | |

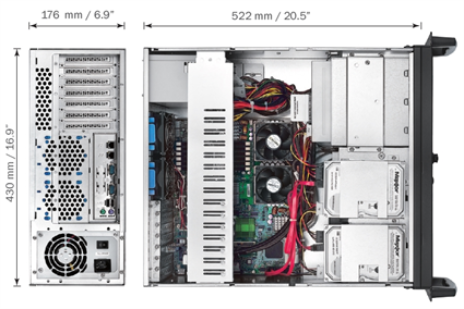

Dimensions
Installation NVIDIA Quadro RTX4000
The additional graphics card option is necessary for the operation of Cognex A5000 3D scanners and Deep Learning.
Fujitsu Mainboard

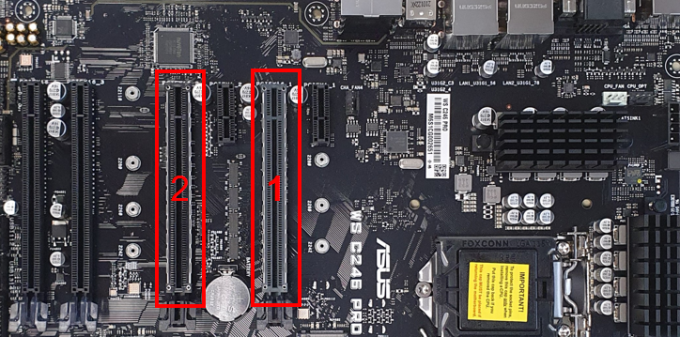

ASUS Mainbord

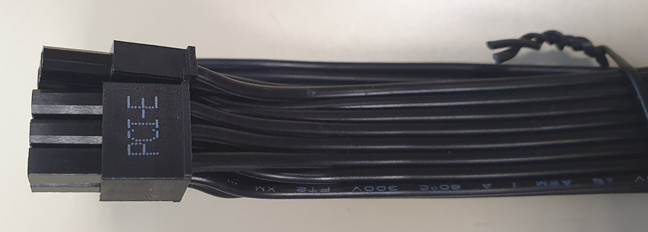

The graphics card MUST be connected to the power supply (port PCI-E) using the correct cable (labeled PCI-E). Incorrect cabling can cause damage to the power supply or graphics card.
