Controller RVC-2207
The RVC series is used for challenging image processing tasks with high resolutions and short cycle times. Due to the modular design of the 19" rack, the controller can be induvidually adapted to the task.
The Plus and Max variants offer a choice of 2 high-performance CPU/Ram constellations.
Information: The controller is suitable for the operation of up to 2 EasyFeeder solutions including 2 additional inspection cameras.
Models
| Articel | Controller | Vision software | |
|---|---|---|---|
| RELISTE EasySightPro | Cognex VisionPro | ||
| RVC-2207-P | Plus | - | - |
| RVC-2207-P-EB | Plus | Base | Base |
| RVC-2207-P-EP | Plus | Plus | Plus |
| RVC-2207-P-EM | Plus | Max | Max |
| RVC-2207-M | Max | - | - |
| RVC-2207-M-EB | Max | Base | Base |
| RVC-2207-M-EP | Max | Plus | Plus |
| RVC-2207-M-EM | Max | Max | Max |

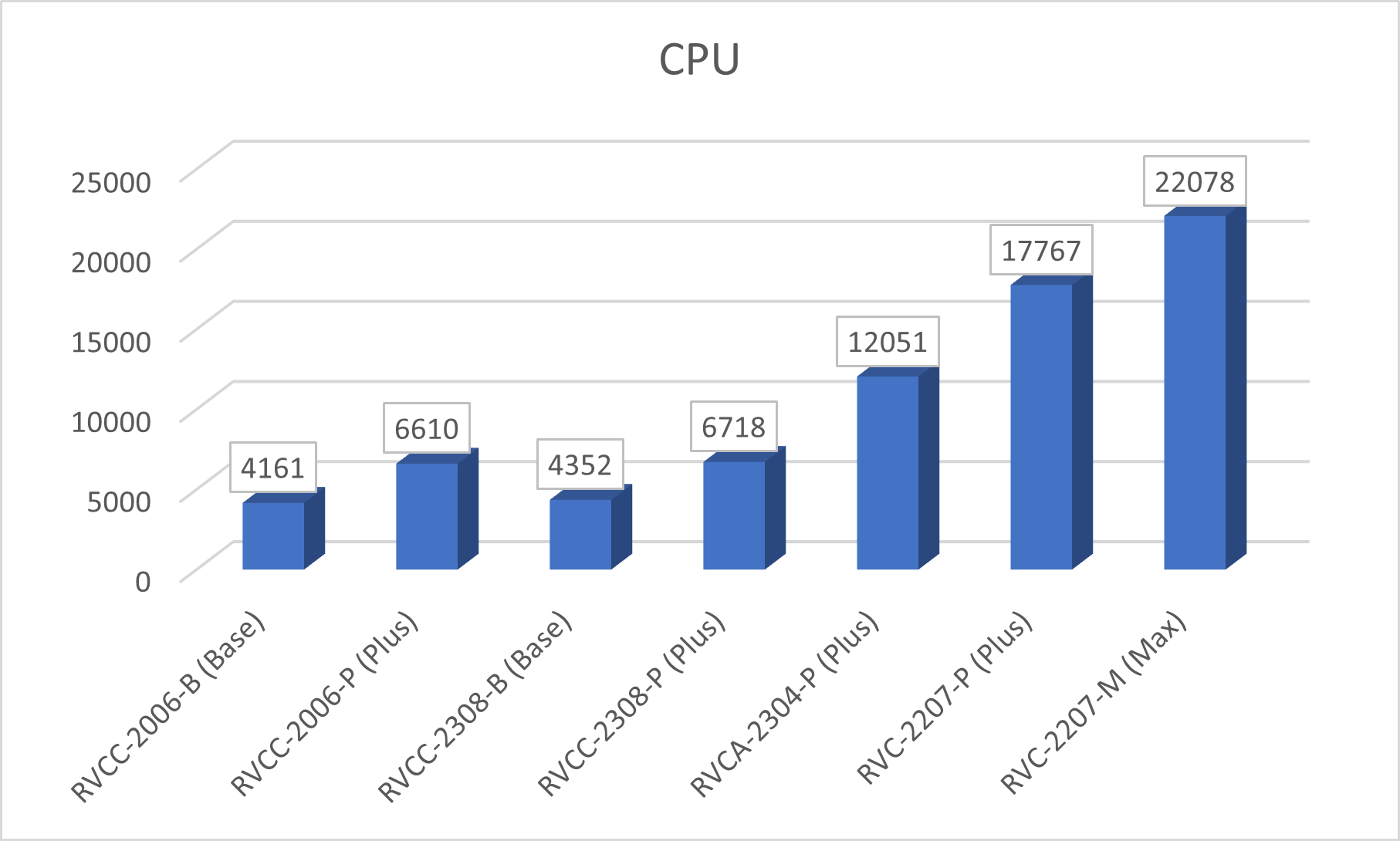

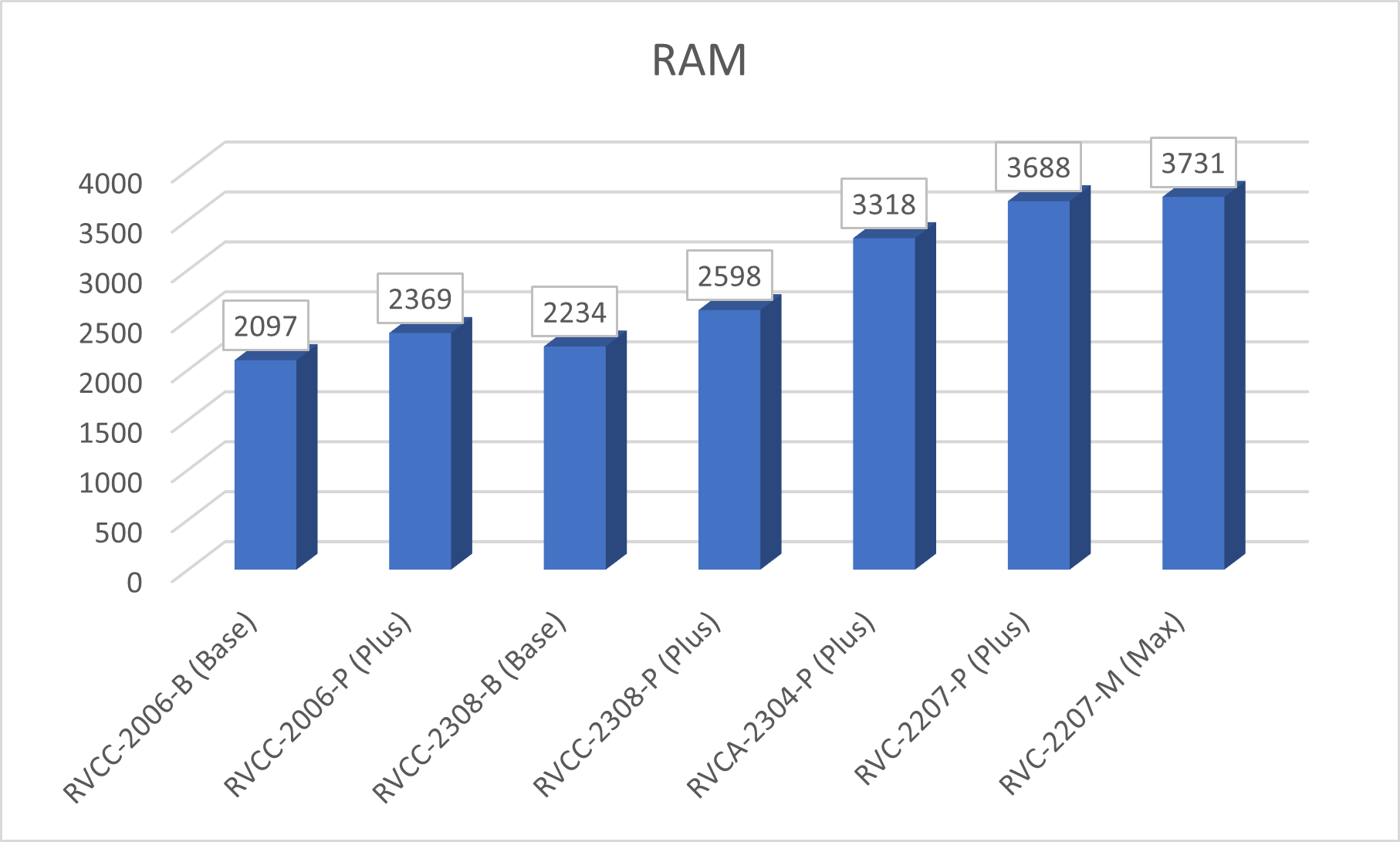

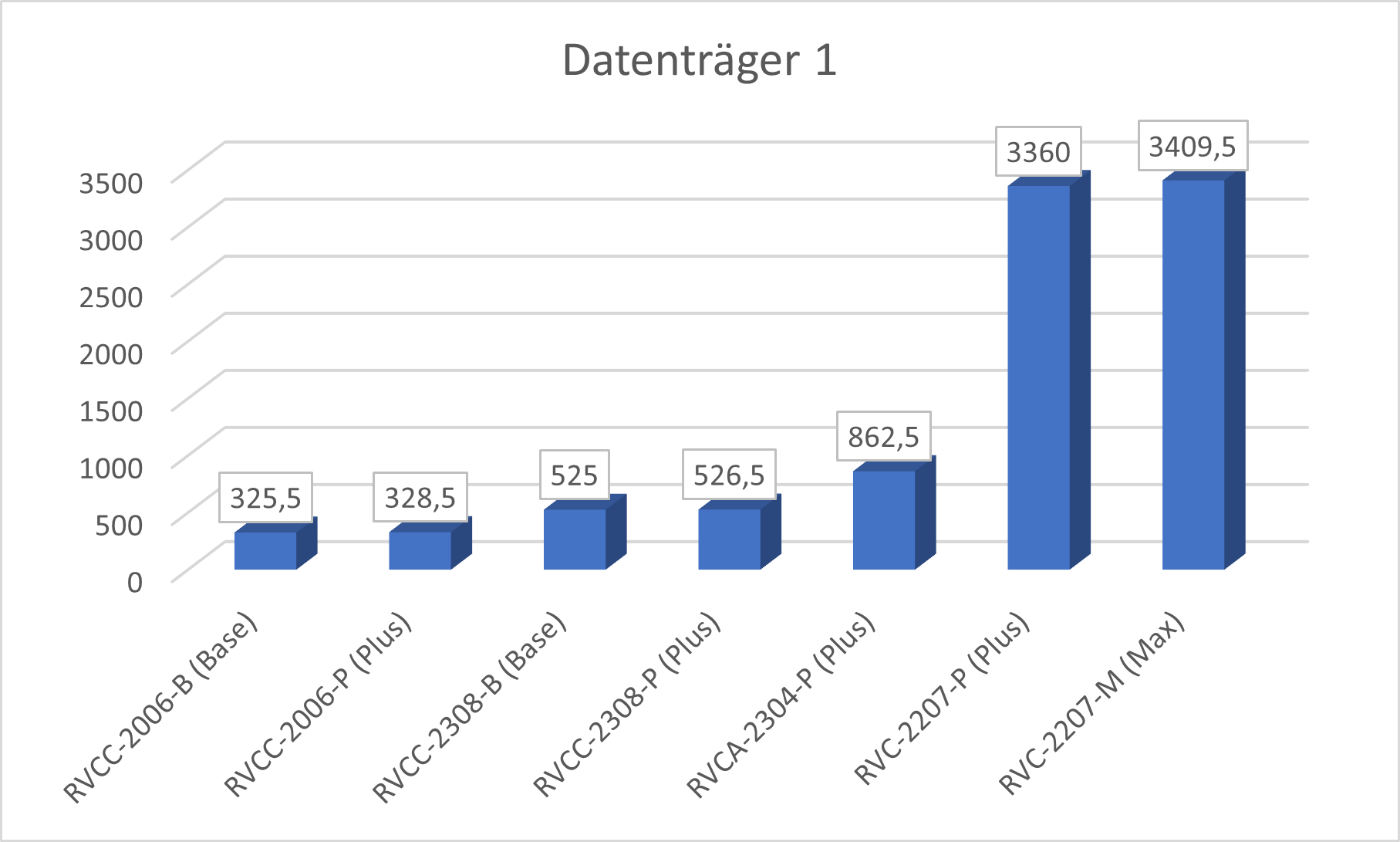

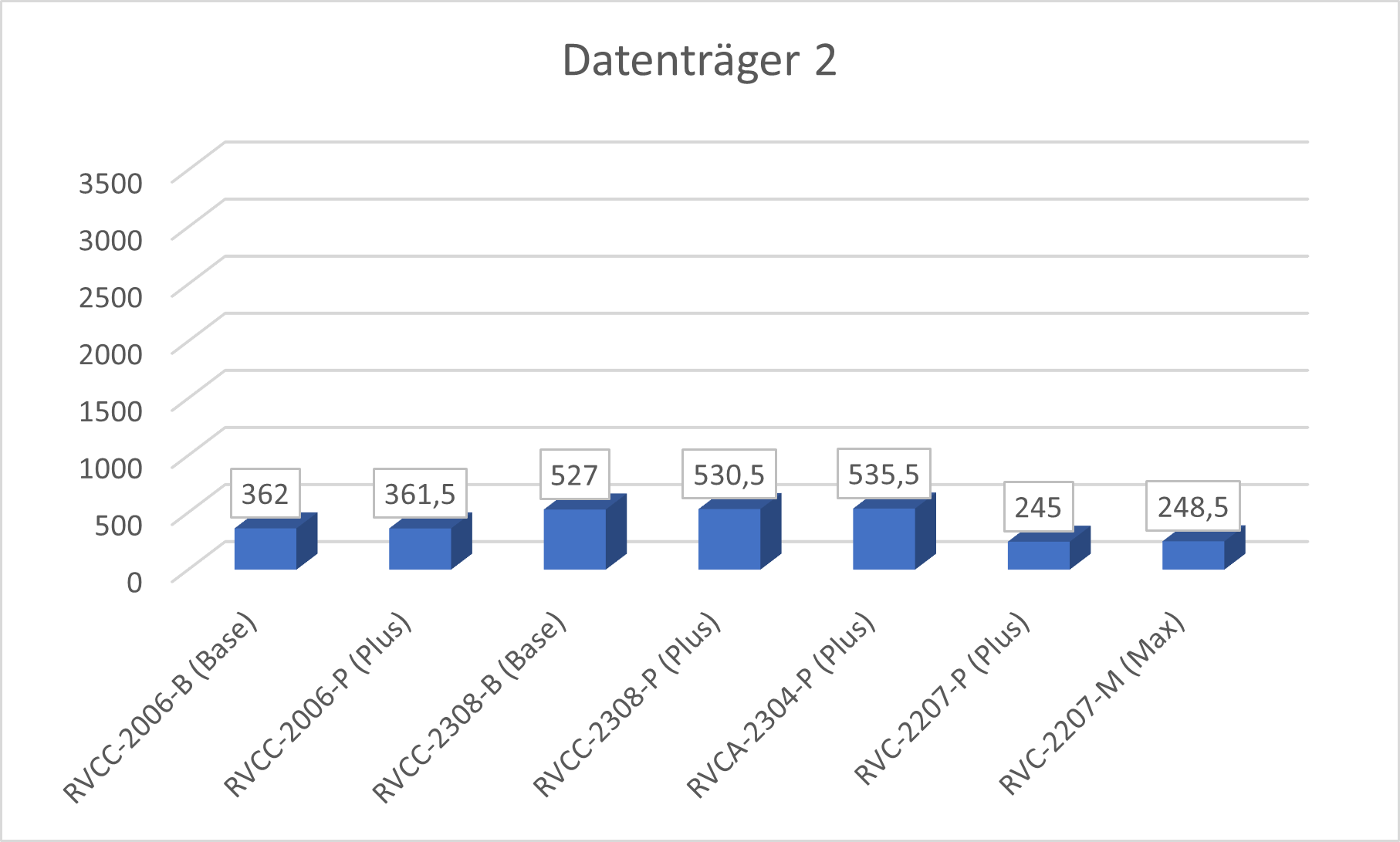

Performance comparison
Technical data
| Vision Controller | PLUS | MAX |
|---|---|---|
| Housing | 19" Rack mount 4HE, ATX Support, Dust filter
1x ARCTIC P12 PWM PST Case Fan 120mm (95.65m³/h / 0.3Sone@1,800RPM) |
|
| Mainboard | ASUS Industrial Mainboard Q470EA-IM-A | |
| Processor | Intel® Core™ i7 - 10700 | Intel® Core™ i9 - 10900K |
| Grafic | Mainboard: Intel(R) UHD Graphics 630 Option: max. 2x NVIDIA RTX 4000 |
|
| Chipset | Intel® Q470E Chipset | |
| Memory | 2x 16GB DDR4-2666 Non-ECC CL19 DIMM | 2x 32GB DDR4-2666 Non-ECC CL19 DIMM |
| Internal storage | System: 500GB mSATA SSD (NVMe M.2 V-NAND) Daten: 4TB SATA 7200RPM 6Gb/s 64MB/128MB Cache |
|
| Camera connections | max. 8 x GigE Vision (Cam1 to Cam8) via plug-in cards | |
| Ethernet connections | 1x LAN Gigabit Ethernet (max. 1000Mbps) 1x LAN Gigabit Ethernet (max. 2500Mbps) |
|
| External connectors Front panel |
2x USB 3.2 Gen1 |
|
| External connections Rear side |
3x USB 3.2 Gen2 (Type A) 1x USB 3.2 Gen2 (Type C) 2x USB 2.0 1x Serial (RS232/422/485) 1x PS/2 |
|
| Display | 1x VGA: max. 1920 x 1200 @ 60Hz 1x HDMI: supports 1.4b, max. 4096 x 2160 @ 30Hz 2x Display Port: supports 1.2, max. 4096 x 2160 @ 60Hz Triple display possible in all combinations |
|
| Operating system | RELISTE Vision Controller OS (Win10 IoT Enterprise LTSC 2021), Deutsch/Englisch | |
| Power supply | 110V AC to 240V AC Delta GPS-1300CBA, 1300W 24/7 |
|
| Environmental temperature | Maximum 40°C For control cabinet installation, appropriate ventilation must be provided |
|
| Accessories | WLAN Nano Stick (Up to 200Mbit/s on 2.4Ghz and 433Mbit/s on 5GHz). Can be removed if necessary. |
|
Dimensions

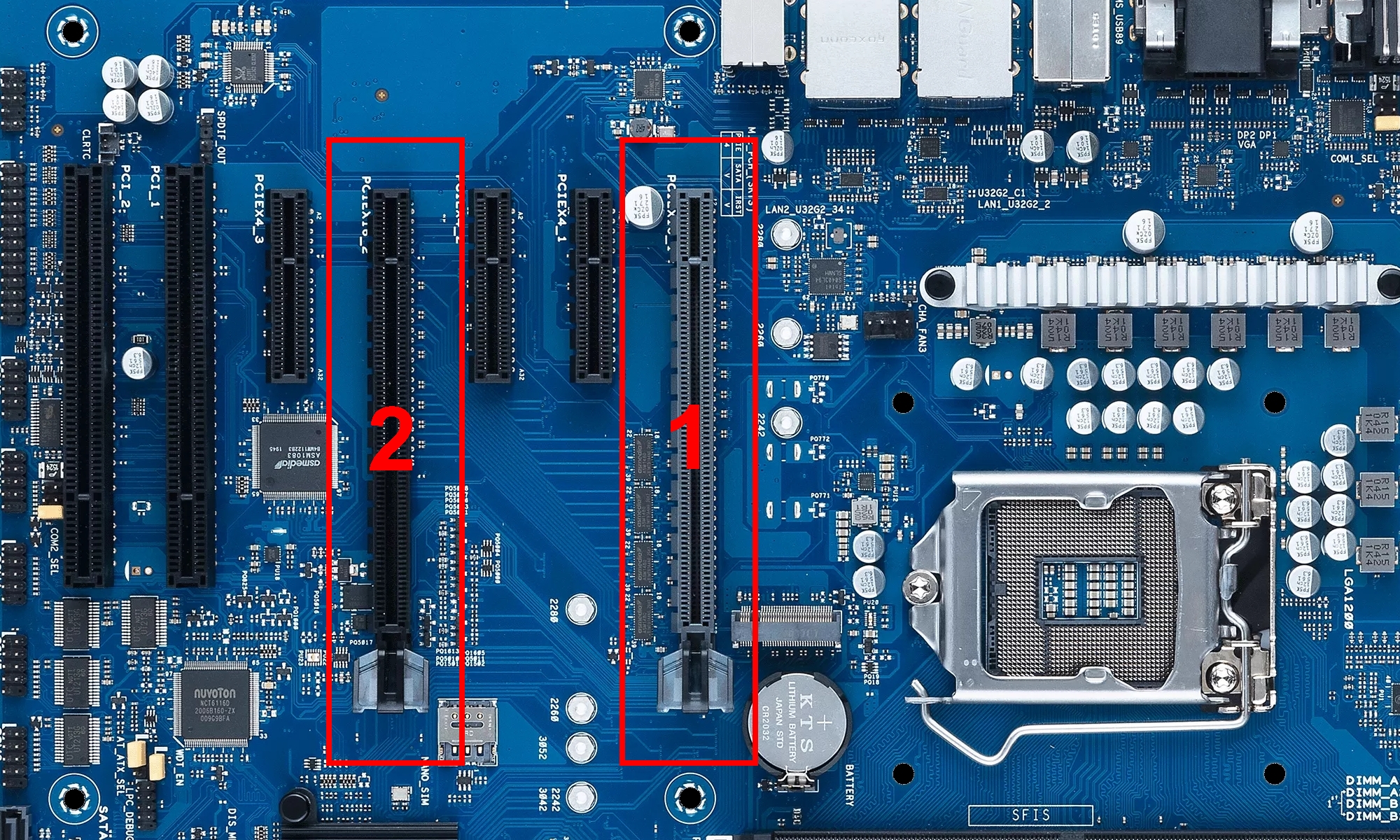

Installation NVIDIA Quadro RTX cards
The additional graphics card option is necessary for the operation of Cognex A5000 3D scanners and Deep Learning.
The graphics card MUST be connected to the power supply (port PCI-E) using the correct cable (labeled PCI-E). Incorrect cabling can cause damage to the power supply or graphics card.
