Digitales IO-Modul

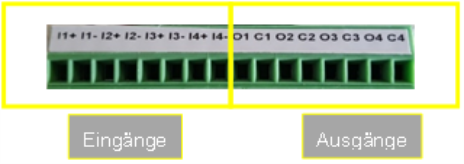

INPUTS (OPTOCOUPLERS)

• Input voltage: up to 24 VDC

• Switching voltage logic 1: +6VDC to +24VDC (+5% max)

• Switching voltage logic 0: 0VDC to +2VDC

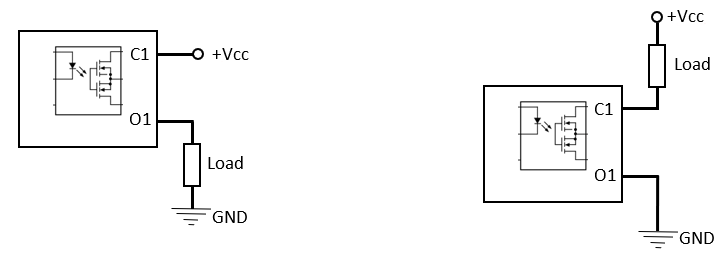

OUTPUTS (SOLID STATE RELAY)

• Load: max. 60VDC / 2A

• Peak current: 3.6A @ 10ms
