Controller RVCA-2304
The RVCA complements our compact series, a device with more power and connectivity.
It has 8 camera ports as well as an optional fieldbus and optional two digital IO interfaces.
The application area is medium image processing tasks with up to 8 cameras.
Information: The controller is suitable for the operation of up to 2 EasyFeeder solutions including 2 additional inspection cameras.
Models
| Article | Controller | Vision software | |
|---|---|---|---|
| RELISTE EasySightPro | Cognex VisionPro | ||
| RVCA-2304-P | Plus | - | - |
| RVCA-2304-P-EB | Plus | Base | Base |
| RVCA-2304-P-EP | Plus | Plus | Plus |
| RVCA-2304-P-EM | Plus | Max | Max |
| RVCA-2304-P-EE | Plus | Edge Learning | Edge Learning |
Performance comparison
Technical data
| RVCA-2304-P (PLUS) | |
|---|---|
| Housing | Embedded box Controller |
| prcessor | Intel® Core™ i7 2.40GHz @35W - 8700T |
| Graphic | Intel® UHD-Grafik 630 |
| Chipset | Intel® Q370 Chipset |
| Working memory | 2x 32GB SO-DIMM 2666MHz DDR4 |
| Internal storage |
System: 128GB M.2 SSD WT
|
| Camera connections | 8 x GigE Vision (Cam1 to Cam8) |
| Ethernet connections | 1x LAN Gigabit Ethernet, 2x LWL |
| External connections |
1 x HDMI 1x Display Port 4x USB 3.1 2x COM (Rs232/422/485) Optional:
|
| Operating system | RELISTE Vision Controller OS (Win11 IoT Enterprise LTSC 2024), German/English |
| Power supply | +24VDC (±5%), 5A |
| Environmental temperature | Maximum 40°C For control cabinet installation, appropriate ventilation must be provided |
| Accessories | WLAN Nano Stick USB 2.0 (150Mbps Wi-Fi Adapter) HDMI Cable 3m |
Connections and controls
| Labeling | Description | |
|---|---|---|
| 1 | - | Switch On/Off |
| 2 | DC 24V IN | Power supply 24V |
| 3 | HDMI, DP | 1x HDMI, 1x Display Port connector |
| 4 | LAN | 1x Gigabit Ethernet |
| 5 (Vision) | CAM1, CAM2, CAM3, CAM4, CAM5, CAM6, CAM7, CAM8 | 8x GigE Vision for camera 1 to 8 |
| 5 (Feeder) | CAM1, FEED1, ROBO1, RES1, CAM2, FEED2, ROBO2, RES2 | Connections for 2x feeder + 2x inspection cameras |
| 6 | - | 4x USB 3.1 |
| 7 | COM1, COM2 | 2x COM port (Rs232/422/485 configurable) |
| 8 | IO1, IO2 | Max. 2 x digital I/O modules with 4 inputs & 4 outputs each |
| 9 | Fieldbus | Feldbus Modul (konfigurierbar für Ethercat, EthernetIP, Profinet, Powerlink, Profibus) |
| 10 | Fiber optic connections | 2 FO ports for future tasks |

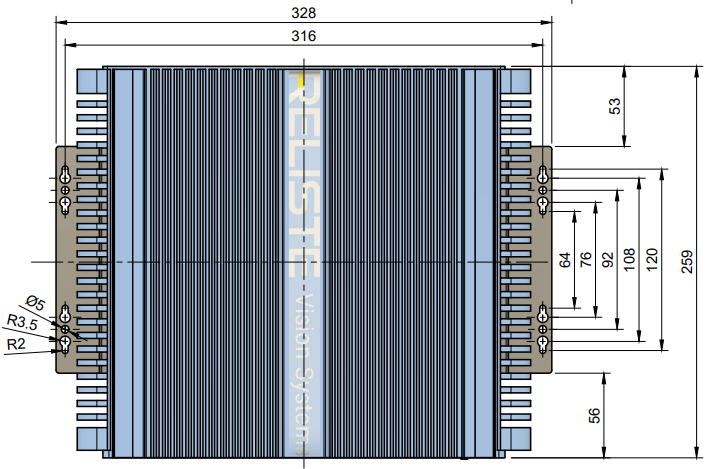

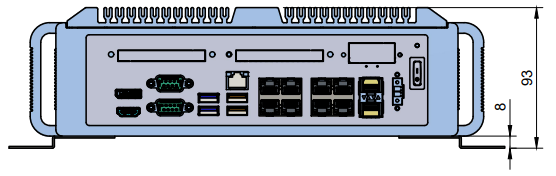

Dimensions
COM port assignment
The operating mode ‘Rs232/422/485’ can be changed in the BIOS of the controller.
| Pin | Description | Pin | Description |
|---|---|---|---|
| 1 | DCD | 6 | DSR |
| 2 | RXD | 7 | RTS |
| 3 | TXD | 8 | CTS |
| 4 | DTR | 9 | RI |
| 5 | GND |
| Pin | Description | Pin | Description |
|---|---|---|---|
| 1 | TX- | 6 | NC |
| 2 | TX+ | 7 | NC |
| 3 | RX+ | 8 | NC |
| 4 | RX- | 9 | NC |
| 5 | GND |
| Pin | Description | Pin | Description |
|---|---|---|---|
| 1 | Data- | 6 | NC |
| 2 | Data+ | 7 | NC |
| 3 | NC | 8 | NC |
| 4 | NC | 9 | NC |
| 5 | GND |
Set automatic start after power failure
The behavior of the RELISTE Vision Controller after power failure can be configured in the Bios menu. By default, the controller starts automatically when the supply voltage returns..
To change this behavior, the Bios menu can be called up by pressing the "DEL" key when the controller is switched on..
1.) Advanced" tab
2.) F81804 Super IO Configuration" menu item
3.) The startup behavior can be adjusted via the "Power Failure" parameter
4.) All changes must be saved with "Save & Exit
Spare parts
| Item number | Designation | Description |
|---|---|---|
| PW-020-002001 | Supply plug | 2-pin supply plug |
| IO-RVC-CIO1084I4O | Digital I/O Module | 4 inputs / 4 outputs |
| SD-RVC-2729033012816 | System storage | 128Gb SSD module for operating system |
| SD-RVC-2129032051218 | Data storage | 512Gb SSD module for data storage |
| RA-RVC-2409010003217 | Working memory | Ram DDR4 32GB |
| AD-RVCA-SATA-DISK | Bracket 2.5" memory | Bracket and cable for the installation of an additional 2.5" storage device |
| ETH-RVC-FO-1GB-RJ45 | RJ45 adapter for FO port | Adapter for connecting 1Gbit cameras to the FO ports |
| BA-RVC-422-B00003 | Bios replacement battery | BIOS replacement battery for RVCC and RVCA controller incl. cable |
